What's in the box of the Carpathen Indoor Greenhouse?

  • 15 x Side Rails (long bars) (A)
  • 16 x Vertical Posts (short bars) (B)
  • 10 x Connecting Bars (C)
  • 5 x Wire Shelves (D)
  • 20 x Zip ties (E)
  • 1 x Cover (F)

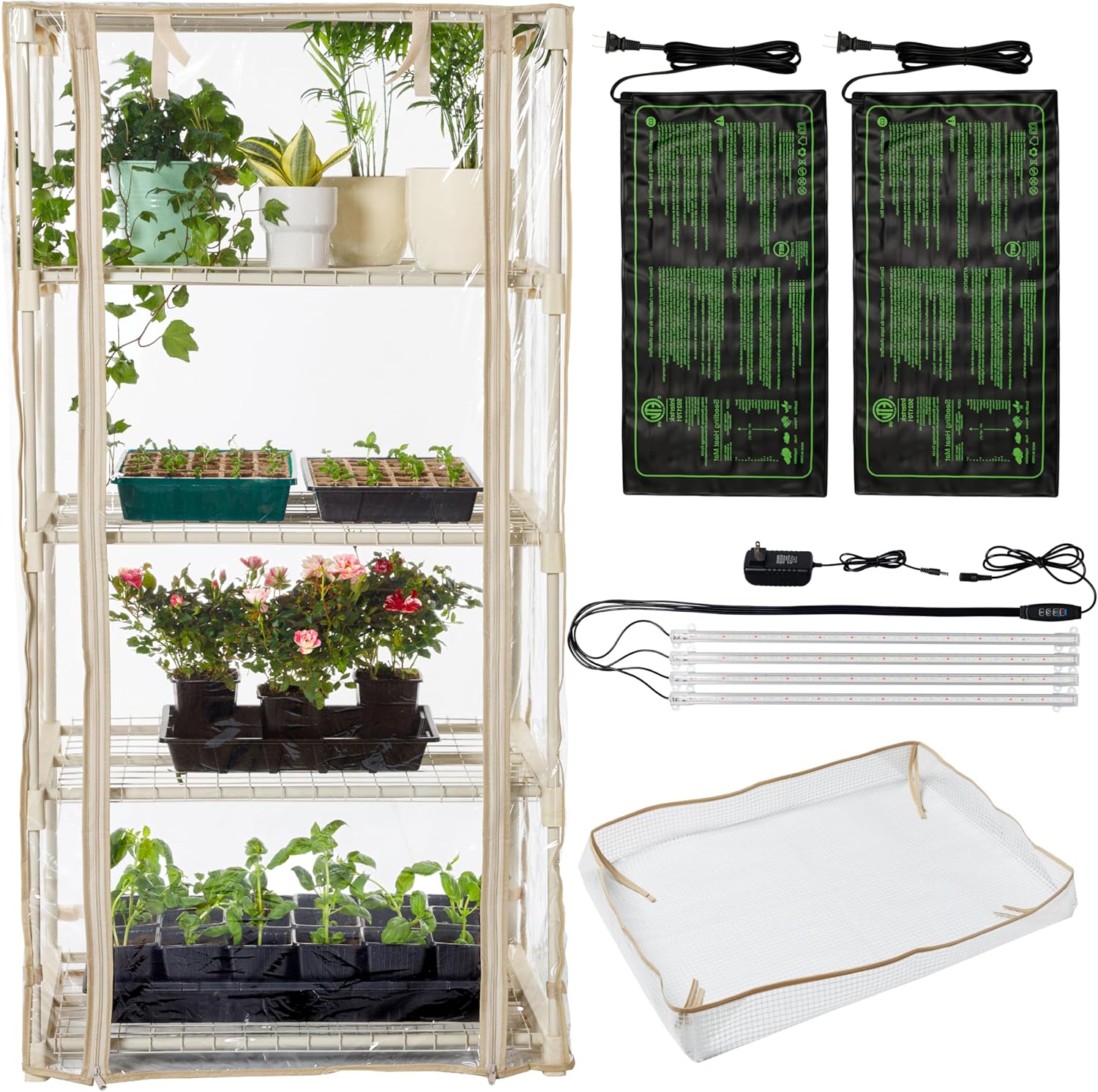

Depending on the model, you can also find:

  • LED Grow Lights with Clips
  • LED Strip Grow Lights
  • Heating Mat
  • Potting Mat

Check our Installation Video for the Carpathen Indoor Greenhouse

Installation Steps

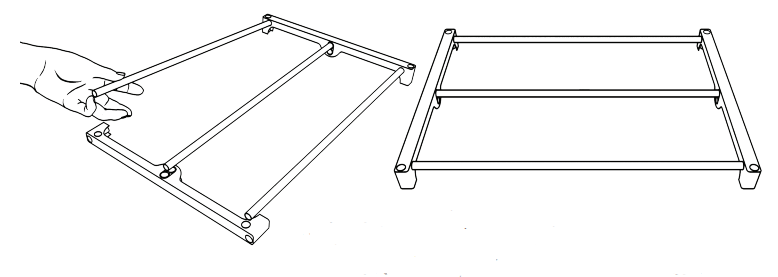

STEP 1: BASE FRAME ASSEMBLY

Locate two connecting bars (C);
• Connect them using three side rails (A);
• Push rails (A) in completely until secure;
• Ensure all three rails (A) are parallel and evenly spaced

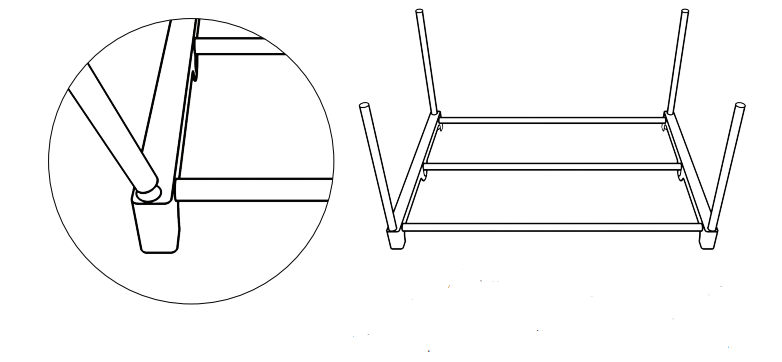

STEP 2: ADDING FIRST TIER VERTICAL POSTS

Insert each post (B) into the upper holes of the connecting
bars (C) at each corner;
• Push posts (B) in firmly until they are fully seated;
• Make sure all posts (B) are upright and securely inserted

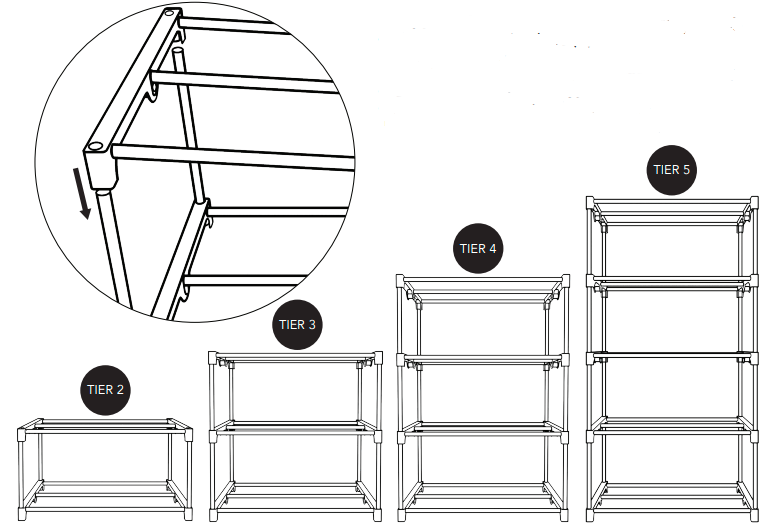

STEP 3: BUILDING ADDITIONAL TIERS

For each of the following tiers (2nd through 5th):
• Add new connecting bars (C) at the top of
vertical posts (B);
• Install 3 side rails (A) between connecting bars (C);
• Add next set of vertical posts (B);
• Ensure everything is level and secure;
• Repeat until all five tiers are assembled.

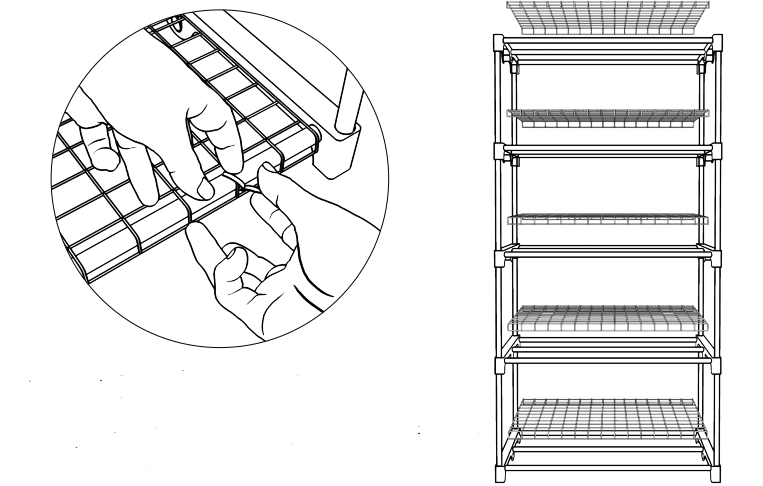

STEP 4: ADDING THE WIRE SHELVES AND SECURING ZIP TIES

• Place one wire shelf (D) on each tier's side rails (A);
• Ensure shelves sit flat and stable;
• For each shelf:
- Attach 4 zip ties (E). One at each corner of the side rail (A);
- The zip tie (E) should secure the wire shelf (D) to the side rail (A);
- After connecting the zip tie (E), cut off the excess length.

STEP 5: FINAL CHECKS AND ADDING THE COVER

Before use:
- Check all the connection are tight and secure;
- Structure is level and stable;
- Shelves are properly seated and secured

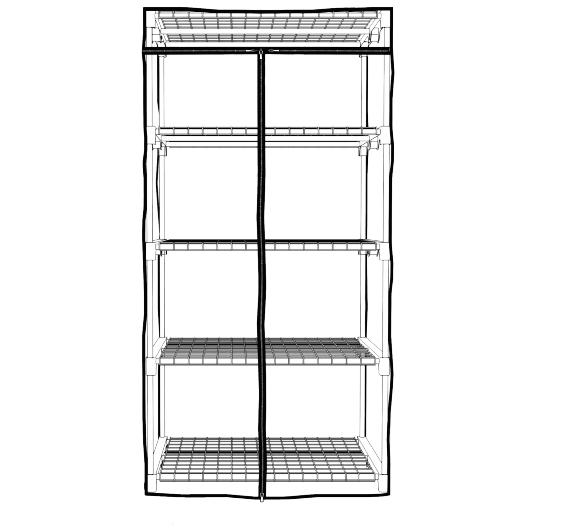

Installing the cover:
- Place the transparent cover over the entire structure, securing it with the hook and loop straps around the vertical posts;
- Instal cover in moderate temperatures (avoid very hot and very cold conditions);
- Pull the cover gently but firmly over the frame;
- Use the provided fabric straps to secure evenly
- Avoid overstretching ;
Troubleshooting :
- If the cover rips, please use repair tape to seal the hole
